Kiwi Clack

Pinecil Soldering Iron v2

Name: Pinecil Soldering Iron v2
Brand: Kiwi Clack
Price: 62.0 NZD
Availability: InStock

$62.00 NZD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

The pinecil can run off a power bank which makes it really accessible. Fast heat up times too.

PACKAGE	Dimensions: 15cm x 9cm x 2.2cm Weight: 80 grams
BODY	Dimensions: 155mm with solder tip / 103mm without solder tip x 12.8mm x 16.2mm Weight: 28g with solder tip / 18g without solder tip Build: Plastic with metal clip (Handle) Color: Black (case)/ Green (Sleeve)
PLATFORM	OS: Ralim’s IronOS build Chipset: Bouffalo BL-706 CPU: 32-bit RV32IMAFC RISC-V “SiFive E24 Core” @ 144 MHz
DISPLAY	Type: OLED White Colour Monochrome Display Size: 0.69 inches Resolution: 96x16pixels
MEMORY	Internal Flash Memory: 192KB System Memory: 132KB SRAM Expansion: None

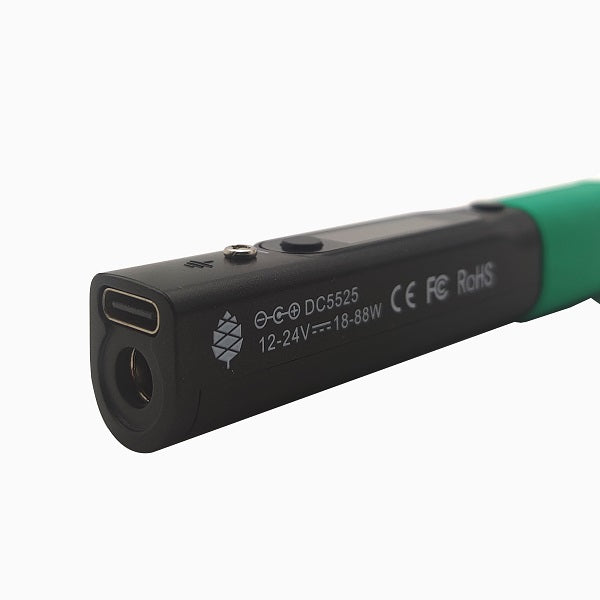

POWER PORTS	USB type C: PD and QC 3.0 12V-20V 3A Barrel Jack: DC5525, 12V-24V DC 3A
TIP	Type B2 Length: 86mm Weight: 8.2g
FEATURES	Capable received power from either USB-C port or barrel jack. GPIO break-out thru USB-C port
CERTIFICATION	FCC CE RED ROHS

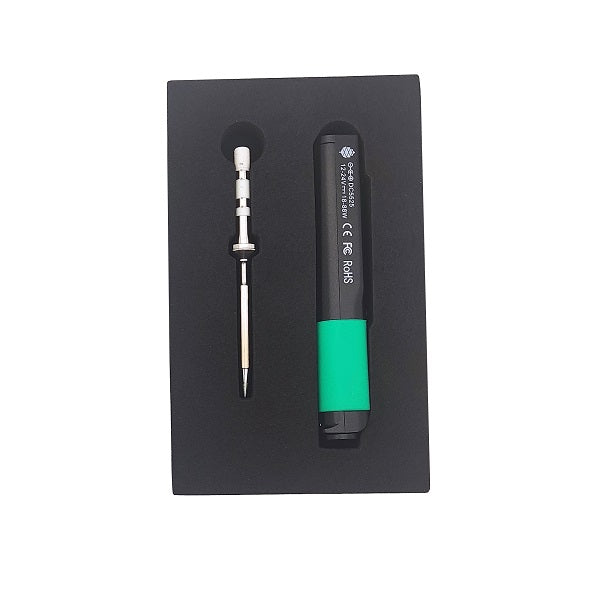

PACKAGE CONTENTS	Pinecil Soldering Iron version 2 ST (Short Tip)-B2 Soldering Tip

Group Buy Policy

Please ensure that you are 100% certain of your purchase before committing to them.

There are no cancellations or refunds as this is a group buy item.

Changes to group buy products will not be possible after the group buy window. As the nature of the sale is for custom manufactured products and cannot be altered once submitted to the manufacturer.

Group Buy items don’t have a definite shipping date, the dates and timeline provided are rough estimates given to us at the time of ordering. As time progresses, these dates may become inaccurate.

Sometimes things can be delayed and overall impacts the delivery timeline. We will communicate with you if these incidences occur.
